粮食仓电动葫芦


粮食仓电动葫芦
粮食仓电动葫芦技术特性:一、动载实验是额定载荷1.25倍。二、2000次的全称测试保证质量。三、 小破断载荷是额定载荷的4倍。
钢板仓电动葫芦 20年品牌厂家,颜色、起升高度都可定制 价格:(电话详谈)
型号:DHP
品牌:宇雕
用途:工矿、企业、仓储、码头
产品售出质保维护两年(图) 起升重量:5-30t
可提升高度:3m
材质:合金钢
中国人保保险保障,保证个人/批发商权益 质保维护:2年
是否可定制:(电联)
特殊种类:
使用说明(看下方说明)
技术特性:四、80级起重链条。五、锻造热处理的起重上下钩。六、双棘爪制动系统。七、无石棉刹车

                     粮食仓电动葫芦详细信息:

       产品介绍:

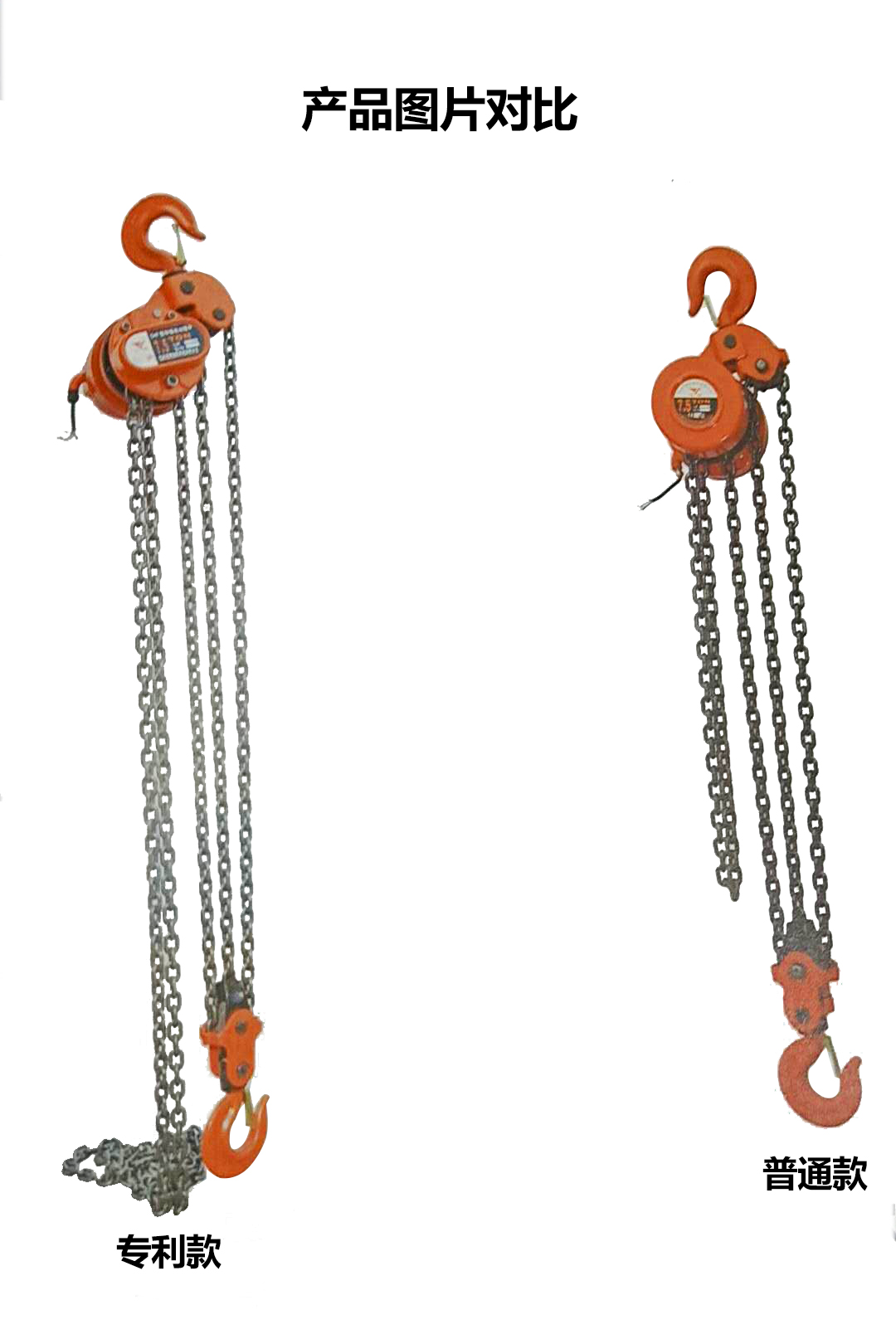

  此款电动葫芦是宇雕自主生产的。与通款比较有以下优点:
采用新型尾环装置,便于链条的拆卸和安装。

通款采用的是传统的尾环装置,更换或维护链条比较杂,需要将机头拆开才可以对链条进行拆卸和安装。
专有技术罩壳是一体加厚罩壳,厚度达4.5mm,罩壳配有三个轴承。普通款罩壳厚度1.2mm。
是加长五齿长轴,配合罩壳轴承进行轴转动,齿轮与轴承的啮合更紧密,传动更灵活,噪音小,摩擦力小。
粮食仓电动葫芦
This type of electric hoist is the patent of independent production of Yu carving. Compared with the following advantages, there are the following advantages:
The new type of tail ring device is adopted to facilitate the demolition and installation of the chain.
The use of the traditional tail ring device, replacement or maintenance of the chain is more complicated, the need to disconnect the head before the chain can be dismantled and installed.
The patent cover is an integral thickened cover with a thickness of 4.5mm and a three shell bearing. The thickness of the ordinary cover shell is 1.2mm.
The patent is a lengthened five teeth long shaft, which rotates with the axle housing bearing, the gear and the bearing mesh more closely, the transmission is more flexible, the noise is small, the friction force is small.

    产品分类:电动葫芦系列

  结构组成:  1、宇雕这次用的尾环是创新技术的尾环设计。

  2、4.5毫米的罩壳设计,罩壳可以防止冲击,

  3、抗外部冲击的齿轮箱及外壳,采用合金钢罩壳,受到冲击时不易受损。

  4、使用时噪音小摩擦小。


产品详情图片:
钢板仓电动葫芦罩壳钢板仓电动葫芦吊钩整体图葫芦整体图
板仓葫芦可以使用的范围:矿区、在油气平台、造船场所、运输,森林地带等、桥梁建筑等、适合在任何地方进行提升和下降,以及大型机器和设备提升和加固时受限制的时候更便于使用此机器。

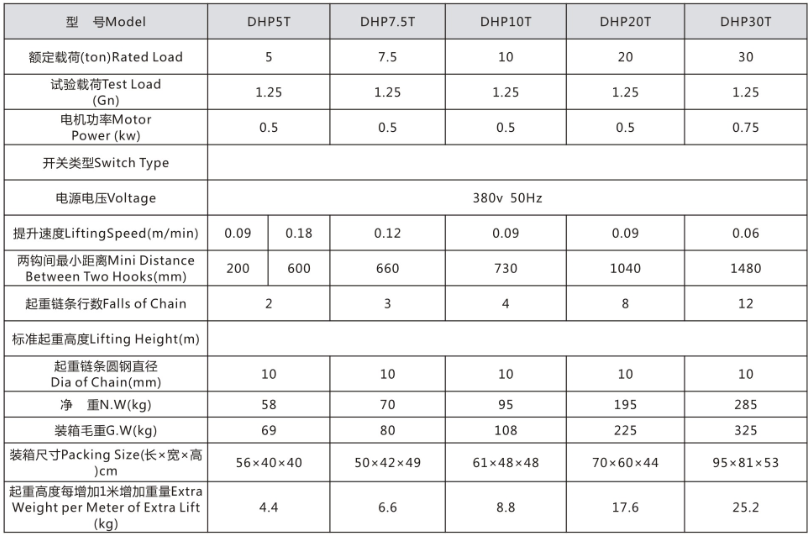

粮食仓电动葫芦型号参数表
钢板仓电动葫芦技术参数
宇雕小编还为大家准备了table表格版:

型 号 DHP5T DHP7.5T DHP10T DHP20T DHP30T
额定载荷(ton) 5 7.5 10 20 30
试验载荷(Gn) 1.25 1.25 1.25 1.25 1.25
电机功率(kw> 0.5 0.5 0.5 0.5 0.75
开关类型
电源电压 380v 50Hz
提升速度(m/min) 0.09 0.18 0.12 0.09 0.09 0.06
两钩间 小距离(mm) 200 600 660 730 1040 1480
起重链条行数 2 3 4 8 12
标准提升高度(m)
起重链圆钢直径(mm) 10 10 10 10 10
净 重(kg) 58 70 95 195 285
装箱毛重(kg) 69 80 108 225 325
装箱尺寸(长x宽x高)cm 56x40x40 50x42x39 61x48x48 70x60x44 95x81x53
起重高度每增加1米增加重量(kg) 4.4 6.6 8.8 17.6 25.2

  该款电动葫芦产品特点

  使用简单、便于携带、制动迅速、定位准确、精工制作、噪音低、运行平稳、受冲击不易受损、结构紧凑、安全可靠。

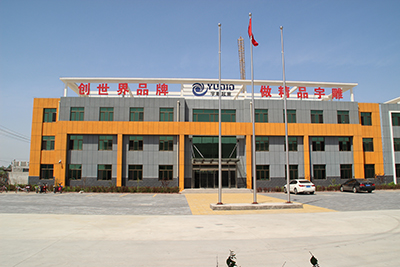

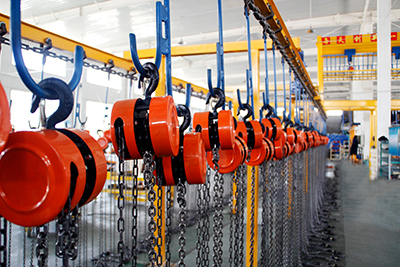

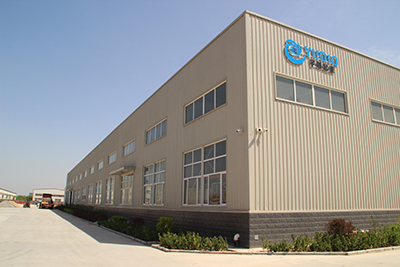

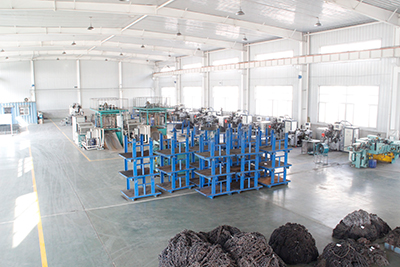

         工厂实景:
 工厂实景工厂实景
工厂实景工厂实景

 粮食仓电动葫芦使用说明(注意事项)

   1. The use of overloading is strictly prohibited.

2, prohibit oblique pulling and flat pulling. When lifting, it is strictly forbidden to walk or stay under or near the heavy objects
3, during the work, if the gourds do not rotate or have abnormal noise, they should stop immediately and then unload the inspection.
4, frequent use, refueling once a week, intermittent use, refueling once a month.
5, strictly prohibit collision, beating up hoist, storage should be dry and ventilated.
6. The maintenance of this product should be carried out by professional personnel. It should be operated under the guidance of professional personnel with certain mechanical and electrical knowledge. We should read the product instructions carefully before use.
7, must check whether the power supply meets the requirements before use, and operate according to the electrician standard, and check correctly and correctly.
8, the motor work mode is S4 (intermittent), when used, the motor should be prevented from burning for too long continuous working time or frequent braking times, ensuring that the motor's continuous running rate must not exceed 40% during each work, and the braking frequency should not be more than 4 times per minute.
9, before use, must check whether the brake is reliable, regularly check whether the parts are normal, there should be no loose, oil leakage and so on.
10, test run to check whether the sprocket and chain are meshed properly, and no stacking chain is allowed.
11. In the process of lifting and running, the chain is observed at any time; when the chain is collected and placed, it is not allowed to exceed the limit position; the lifting chain is not allowed to hang on other objects so as to avoid the overload.
12. This product can not be disassembled at will. If you need to change the chain or remove the maintenance, it must be directed by professional staff.
13. When the product is used at the same time in the group, the special electric control cabinet produced by the company must be configured so as not to affect the synchronism of its speed, and it is designed, installed and operated by the special person. The lifting should be carried out, the test operation should be empty, the connection parts, the lifting chain, the hook and so on are checked or not, and the length of the lifting chain should be adjusted before the lifting, so that the tensioning degree of the lifting chain of each product is consistent. During the promotion, the special person should observe each product, check whether to touch with other objects, whether there is abnormal sound or chain chain, it is found that abnormality should be stopped immediately and can be used until the trouble is excluded.

  河北宇雕的产品已经顺利通过生产许可证、出口许可证、且更不止于国内起重市场,还远销欧美、中东、东南亚等 和地区,获得了客户的一致赞誉。

  欢迎广大新老客户来电咨询!宇雕愿与您友好合作辉煌创辉煌!
